Від віддалених котеджів до міських апартаментів: типові сценарії для гібридного інвертора для дому

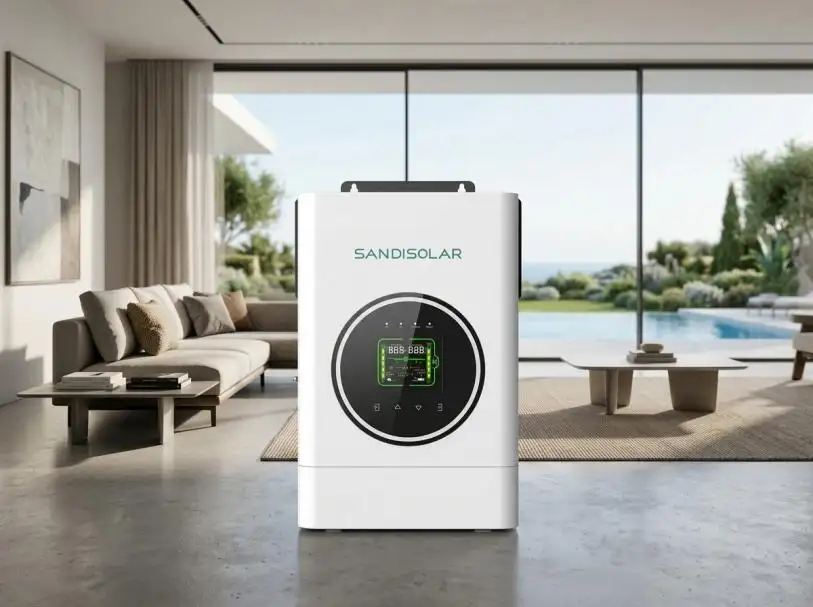

A Hybrid Inverter for Home is no longer a niche piece of equipment for off-grid enthusiasts. Modern units like the SANDISOLAR SD PLUS 4.2KW Off Grid Inverter with AI Assistant combine solar charging, battery management, and grid interaction in one compact package. With features such as a wide MPPT voltage range (60-450V), 18A PV input current, UPS-level switching (≤4ms), and up to 9-unit parallel capability, this inverter adapts to vastly different living situations.

Below we explore four real-world scenarios – from a mountain cabin to a city apartment – showing how the same Hybrid Inverter for Home can be configured to deliver energy independence, cost savings, or backup security.

Scenario 1: Remote Cabin – Complete Off-Grid Living

No grid access, full reliance on solar + batteries

A remote cabin in the mountains or on an island has no utility connection. Here, the inverter must act as the primary power source 24/7.

•  Wide MPPT range (60-450V) for weak light conditions: In forests or foggy areas, the low start-up voltage (90V) allows energy harvest even at dawn or under heavy cloud cover, maximizing daily yield.

•  High 18A PV input current for larger panels: Modern 500W+ solar modules often deliver 13-15A. The SD PLUS handles up to 18A per MPPT, preventing "current clipping" and using the full panel potential without oversizing the array.

•  Parallel connection up to 9 units for scalability: Start with one 5.2kW unit for a small cabin; add more units as you expand (workshop, EV charger). No need to replace the entire system.

•  137A discharge current to start well pumps: Deep-well pumps have high surge current. With 2× rated power overload for 5 seconds, the inverter handles motor starts reliably without tripping.

✅  Verdict for remote cabins: A single SD-PLUS-2442WP-EU, paired with a 10-15kWh LiFePO₄ battery and 4-5kW of solar, can power lights, a refrigerator, a TV for year-round.

Scenario 2: City Apartment – Emergency Backup & Peak Shaving

Grid-connected, but prone to outages or high time-of-use rates

Even in a modern city, blackouts happen (storms, grid maintenance). A Hybrid Inverter for Home can be installed in a storage room or balcony, connected to a small battery and a few solar panels.

•  UPS-level switching ≤4ms protects sensitive electronics: Unlike typical backup systems that take 20-50ms (causing PC or NAS reboot), ≤4ms is faster than an ATX power supply's hold-up time – your router, computer, and alarm system stay on seamlessly.

•  Smart load management with dual AC outputs: Prioritize critical loads (refrigerator, modem, medical devices) on output 1, and non-essential loads (kettle, heaters) on output 2. When battery is low, only output 2 is cut, extending backup time.

•  Stylish design with touch keys: The larger screen and touch interface fit modern apartment aesthetics – no industrial look, easy for family members to monitor.

•  No heavy rewiring needed: The inverter can be wired as a "mid-grid" backup for selected sockets. A licensed electrician can install it within half a day.

✅  Verdict for city apartments: A compact 5.2kW unit (no solar panels required, just battery) gives you outage protection for 6-8 hours. Add 2-3 balcony solar panels to also offset daily consumption.

Scenario 3: RV / Boat – Mobile Power Independence

Limited space, variable solar input, no grid

Recreational vehicles and boats demand rugged, vibration-resistant electronics that can handle fluctuating solar radiation from driving or sailing.

•  Low start-up voltage (90V) works with partial shading: RV rooftop panels are often shaded by vents or antennas. The wide MPPT range ensures the inverter still finds a power point even when only 2-3 panels are partially lit.

•  High charge current (120A) for fast solar absorption: When you stop at a sunny campsite for only a few hours, 120A charging (≈5.7kW at 48V) quickly tops up your battery – so you can run the air conditioner all night.

•  Parallel connection for future expansion: Start with one unit. Later add a second unit if you install more roof space or a towed generator – perfect for large motorhomes or catamarans.

•  Enhanced overload capacity for induction cooktops: Cooking appliances often demand 3-4kW for short periods. The 2× rated power for 5 seconds handles induction cooktop surges without shutting down.

✅  Verdict for RVs/boats: Use a 48V 5kWh LFP battery, 1.5-2kW of flexible solar panels, and the SD PLUS. The built-in WiFi (for HaiPower app) lets you monitor energy from the driver's cabin.

Scenario 4: Rural Self-Built House – Grid Assist & Load Shifting

Unreliable rural grid, but still connected – focus on economic payback

Many rural homes have a grid connection that suffers from voltage drops or frequent short outages. A Hybrid Inverter for Home can work in "grid-assist" mode, blending solar, battery, and grid.

•  Parallel up to 9 units for all-electric homes: Rural houses often use heat pumps, electric water heaters, and workshop tools. Start with 9 units? No – but two units in parallel give 10.4kW continuous (over 20kW surge), enough for a large family.

•  Smart load management to avoid grid upgrade fees: Instead of paying thousands to upgrade a weak rural grid connection, use dual AC outputs – heavy loads (welder, circular saw) run from battery/inverter, while lighting and fridge stay on the grid. The grid sees only a small, constant load.

•  18A PV input for low-cost large panels: In open rural land, you can install 550W+ ground-mounted panels. The high input current means you can connect them in 2-3 strings without additional combiners.

•  Remote monitoring for system health: With the HaiPower app, check from anywhere whether the battery has enough charge for an expected outage – no need to walk to the utility room.

•  Seamless switchover during rural grid fluctuations: When grid voltage drops below 180V (common on long rural lines), the inverter disconnects within 4ms and runs from battery, protecting appliances from brownout damage.

✅  Verdict for rural houses: A 2-unit parallel setup (10.4kW total), 15-20kWh battery, and 6-8kW of solar can cut grid dependence by 80-90%, paying back in 4-6 years while providing superior power quality.

Why the SANDISOLAR SD PLUS 4.2KW Fits All Four Scenarios

Final Thoughts

Choosing a Hybrid Inverter for Home is not about buying the most expensive unit – it's about matching technical specifications to your living situation. The SANDISOLAR SD PLUS 4.2KW Off Grid Inverter with AI Assistant offers a rare combination: wide voltage range, high PV current, true UPS switching, and scalable parallel design. Whether you live in a forest cabin, a city apartment, a moving RV, or a rural farmstead, this single platform adapts to your energy needs today and grows with you tomorrow.

Ready to design your own system? Download the full technical brochure or request a quote to see how the SD-PLUS-2442WP-EU fits your home.

Поширені питання

Q1: How many SD PLUS units can I connect in parallel?

Up to 9 units, providing a total output of up to 46.8kW.

Q2: What is the duration of the UPS switchover?

The switchover time takes about 4 milliseconds, and thus there will be no disruption at all in the operations of computers, routers and NAS devices.

Q3: Can I check the system status from a distance?

Yes, the integrated WiFi and the HaiPower app allow you to monitor the status and events of the system in real-time and from a distance.

Q4: What is the maximum power level for the PV input?

The highest level of PV input power can be 5200W, with the input voltage rated at 500V and the current at 18A per MPPT.

Q5: Air conditioners have a high power demand when they are switched on. Can this inverter work in such a situation?

Yes, the inverter can provide power of 2 times the rated level (over 10kW surge) for 5 seconds, and will thus easily be able to start most AC units in a typical house.
